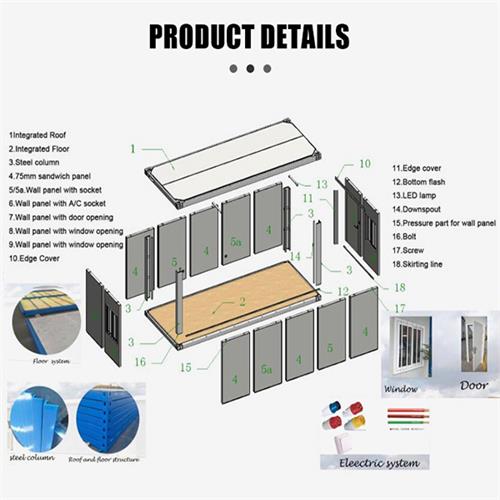

Flatpack is a kind of container house consists by container roof, container base, four columns and sandwich wall panels. We have prefabricated all above parts in our factory, so the container roof will be an integrated one piece with PU foam as insulation, with electrical system embedded and ready for connecting. The door and windows are pre-installed into the wall panel, conduits, cable, sockets and switches are also well pre-installed. Base is also well finished with floor deck and flooring, even plumbing is pre-set into the container base, only need to be connected to the outlets during installation.

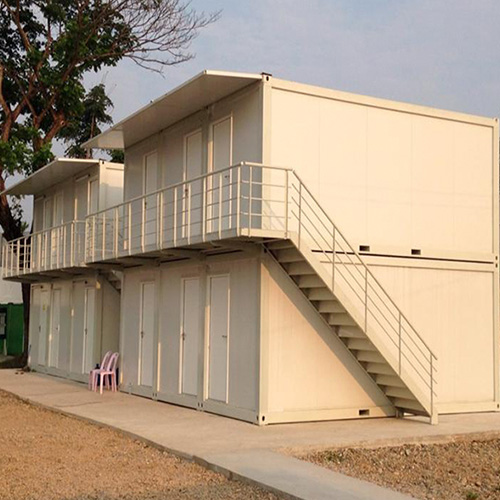

We have standard 20ft size design in both empty for office space and with bathroom for living. They can also be combined together to meet with different space requirements, they can also be built in three floors to save land.
CBC Flatpack Container House is made by Q355 galvanized steel frame and long lifetime sandwich wall panels, the overall lifetime of our flatpack container home can reaches to 15~20 years even in some heavy wind or highly corrosive areas.
|
Size |
Length |
6058mm / 6000mm or customized |
|
Width |
2438mm /3000mm or customized |
|
|
Height |
2600mm / 2791mm / 3000mm or customized |
|
|
Clear height indoor |
5800mm*2200mm*2300mm, or custom-made dimensions for special projects |
|
|
|
Roof System |
Roof structure made by 2.5~3mm thick Q355 galvanized steel, cold rolled special sections, high strength + 70mm thick integrated PU foam insulation + embedded electrical system |
|
Roof loading:>1.0KN/m2, can walk on the roof directly |
||
|
Base System |
Q355 galvanized steel structure chassis (2.5~3mm thickness) + 18mm cement-fiber board + 2mm PVC floor sheet (glass wool insulation for optional) |
|
|
Floor loading:>2.5KN/m2 |
||
|
Wall System |
T=50/75/100mm EPS / rock wool / glass fiber / PU sandwich panel, 0.4mm color-bond steel on both sides |
|
|
Door System |
Steel door / Fire-proof door / Sandwich panel door |
|
|
Window System |
Aluminum alloy or PVC window, single or double glass |
|
|
Floor System |
PVC, plywood or customized |
|
|
Option |
Drainage system |
Full embedded in factory, can be customized |
|
Electric system |
Pre-installed in factory, can be customized |
|
|
Technical Parameter |
Suitable temperature |
-40ºC to 40ºC |
|
Wind resistance |
210km/h |
|
|
Seismic resistance |
Grade 8 |
we chose PU injection for the roof insulation system, which has much better performance in tightness, strength and insulation. this system is patented in China. what's more, our container home is designed for 1KN/sqm roof live load and 2.5KN/sqm floor load, wind resistance can reach to 210km/H;

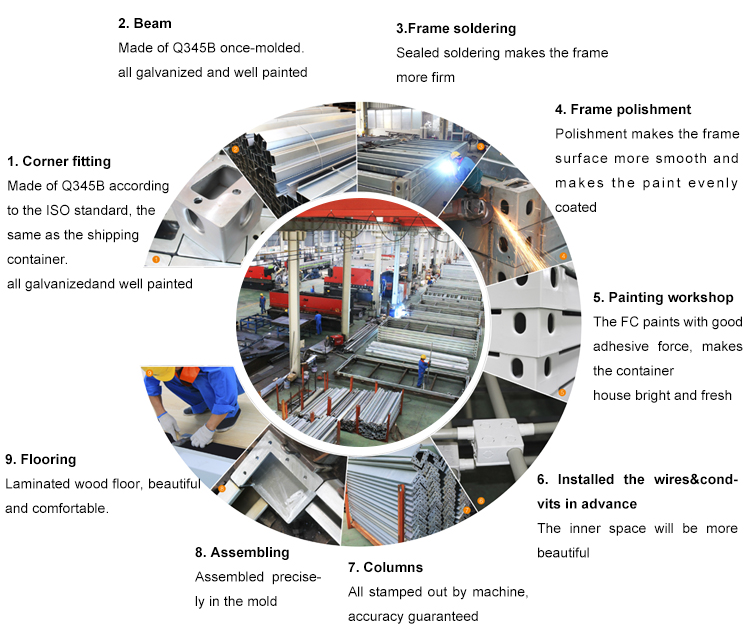

we use Q355 galvanized steel cold rolled for the main frame, all frames are full welded together then well-polished and painted in our automatically painting platform, which will be much better than by manual. the steel sheets on both side of the sandwich wall panels are with aluminum zinc galvanized-AZ50g/sqm plus PE coating in 15/5um treatments, lifetime can reach to 15~20 years.
most of the cutting, drilling, welding and painting are by machines or auto-arms, much better in accuracy and more guarantee for the quality;
we have SOC packing which will be much easier for materials sort out onsite, less problem for installation and also time saving. we have very detail installation instructions and videos to guide the onsite work, make sure every project can be handled over perfectly.

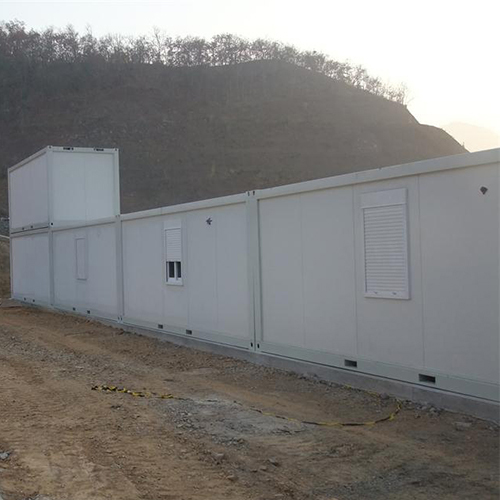

Fast installation and can be easily relocated after the project finished, very convenient for constr...
Easy to handle in the remote mining areas (even easier than flatpack, can handle all manually), life...
Massive production capability and fast installation made the detachable to be the perfect solution d...
Ready to move in, easy to erect, convenient to relocated, affordable for temporary use.
|
No. |
Item |
CBC Flatpack Cube |
Pictures |
Evolution |
Other Brand |
Evolution |
|
1 |
Steel Structure |
G355 galvanized steel beams in thickness 2.5~3mm, high structure strength and durability |
|
★★★★★ |
G235 steel beams with only painting and thinner steel materials used, low structure strength and durability |
★★★ |
|
2 |
Electrical System |
pre-installed in the roof and wall panels, save construction time and cost |
|
★★★★★ |
need to be installed onsite, cause extra onsite labor cost and more problems |
★★★ |
|
3 |
Plumbing Pipes |
pre-installed in the bottom frame, save onsite labor cost |
|
★★★★★ |
need to drill holes and install on site, cause extra onsite labor cost |
★ |
|
4 |
Window & Door |
pre-installed in the wall panels, save onsite labor cost |
|
★★★★★ |
need to be installed onsite, cause extra onsite labor cost |
★★★ |
|
5 |
Steel Treatment |
Advanced sand blasting equipment line, improve painting adhesion and durability |
|
★★★★★ |
outsourced processing or no pretreatment, low painting adhesion and durability |
★★★ |
|
6 |
Painting |
Advanced automatically painting line to ensure good painting quality |
|
★★★★★ |
outsourced or manually, cannot ensure the painting quality |
★★★ |
|
7 |
advanced paint technology, water-based painting available, environment friendly |
★★★★★ |
only oil-based painting, more pollution to the environment |
★★★ |
||
|
8 |
Prefabrication |
70-90% as per client’s requirement, save onsite labor cost |
|
★★★★★ |
around 30% or only loosen parts available, extra site labor cost |
★★ |
|
9 |
Marking |
two-dimensional code component tracking system can effectively manage each component |
|
★★★★★ |
No label or very simple label, can’t track every component |
★★ |
|
10 |
Fast Installation |
4 workers could install 2 units in one day. Offering installation manuals, videos guidance, or send people to support. |
|
★★★★★ |
Need many workers on site to sort out materials and install. no installation manual, videos guidance, couldn’t send people overseas. |
★★ |
|
11 |
Packing & Delivery |
special steel racks to protect materials within the shipping container during the long-distance transportation |
|
★★★★★ |
no packing frame, easy to cause damage, no guarantee what you can get. |
★★★ |
|
12 |
SOC packing for short-distance transportation, no need to load into shipping container, save the shipping cost |
|
★★★★★ |
only can load into shipping container |
★★★ |
Packing and transportation

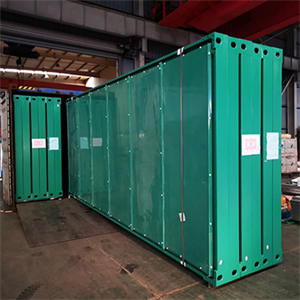

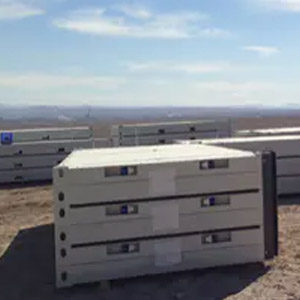

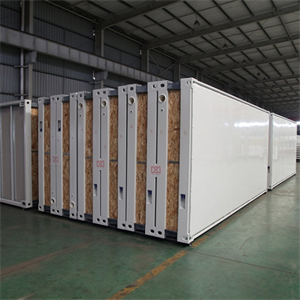

We have two methods for packing: flat packing or SOC packing. We will pack the container roof and base together, and use steel rack to pack and protect the sandwich wall panels and other accessories. Or we will use the container roof and base to make a self-owned-container box, put all sandwich wall panels and other components into the box, so one unit is a box, very easy to sort out the materials onsite and no items will be missed.
 |
 |
 |
 |

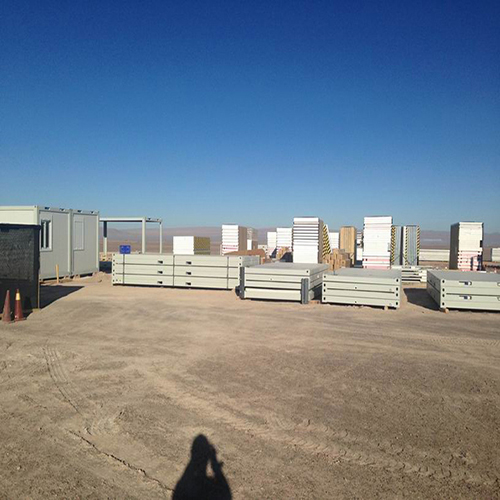

| Flat packing | SOC packing | Flatpack Packages onsite | Down loading the flatpack packages onsite |
| Project Name | SK Chile Camp | ||
| Finished Time | Year 2014. | ||
| Project Place | Chile | ||
| Building Area | 256 units | ||
| Project Description | Custom made camp designs for SK in Chile, used as office, accommodation and public areas, including walkway and part roofs. Chile standard electrical system. Use our standard 20ft prefab container house to join together for large space. |

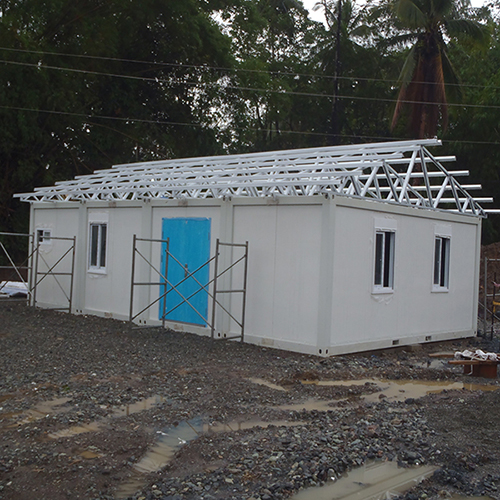

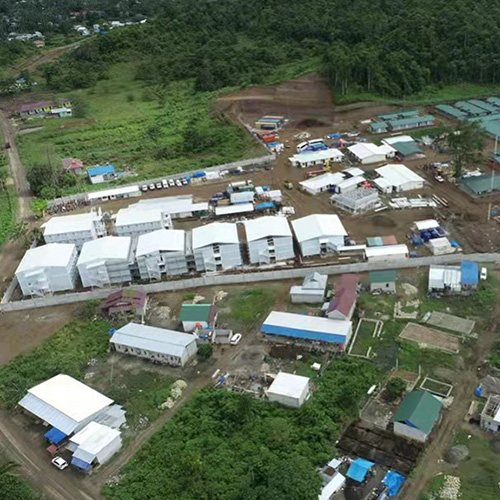

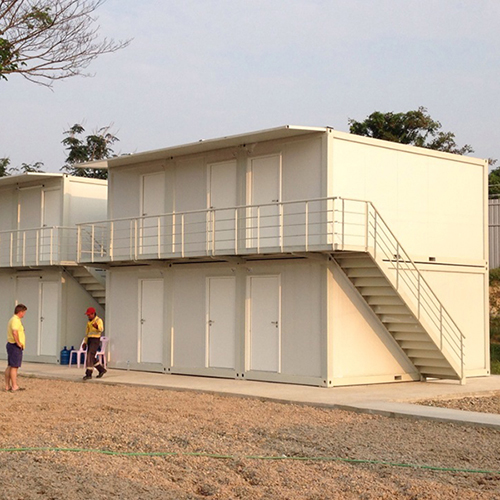

| Project Name | Workers' Accommodation Camp in Lao | ||
| Finished Time | Year 2016 | ||
| Project Place | Lao | ||
| Building Area | 120 units | ||
| Project Description | Standard 20ft container in two floors for workers' accommodation. Some with bathroom, also include some public shower and toilet. Provided the whole package including staircase and light gauge steel frame roof system. |

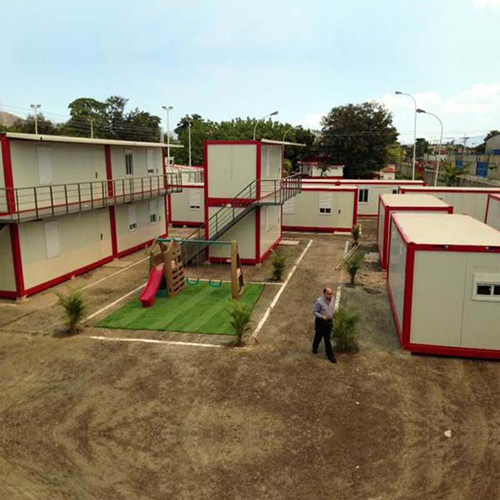

| Project Name | Venezuela Housing | ||
| Finished Time | Year 2013 | ||
| Project Place | Venezuela | ||
| Building Area | 560 units | ||
| Project Description | Container house for low cost housing project in Venezuela. Our 20ft flatpack container house can be combined freely to achieve different space requirements, they can also be re-located easily. |
| Project Name | SMMCI Project | ||
| Finished Time | Year 2014 | ||
| Project Place | South Manila, Philippines | ||
| Building Area | 2600 S.qm warehouse plus 1700sqm office/camp facility | ||
| Project Description | For "San Mining CONST. CORP.", use as onsite warehouse, office, camp and other facilities. Full package provided by CBC. |
| Project Name | Mining Site Camp in Lao | ||
| Finished Time | Year 2019 | ||
| Project Place | Lao | ||
| Building Area | 56 units | ||
| Project Description | Accommodation and office blocks made of flat pack container houses, most are two floors. Meets with AU standards. |

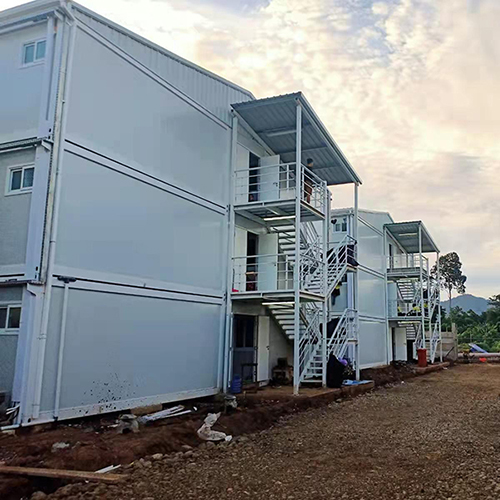

| Project Name | MTI Accommodation Camp | ||
| Finished Time | Year 2022 | ||
| Project Place | Indonesia | ||
| Building Area | 288 rooms with ensuite in three floor, 8 buildings | ||
| Project Description | 8 Staff accommodation buildings for PT. Merdeka Copper Gold. Each block in three floors, 12 rooms with ensuites in every floor, 36 rooms combine into one block. CBC designs, provides all materials, accessories, facilities within two months. |

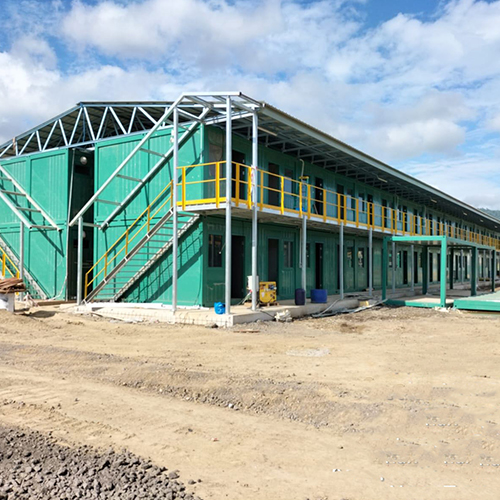

| Project Name | AMMAN Accommodation Camp | ||
| Finished Time | Year 2022 | ||
| Project Place | Indonesia | ||
| Building Area | 480 rooms with ensuite | ||
| Project Description | 6 Staff accommodation buildings for AMMAN. Each block in two floors, 40 rooms with ensuites in every floor, 80 rooms combine into one block. CBC designs, provides all materials, accessories, facilities. All pods customized for our client. |

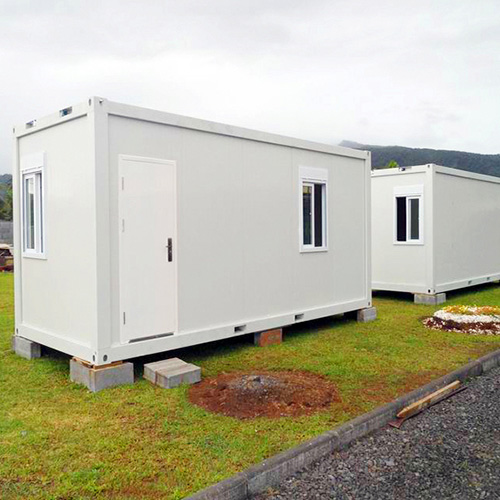

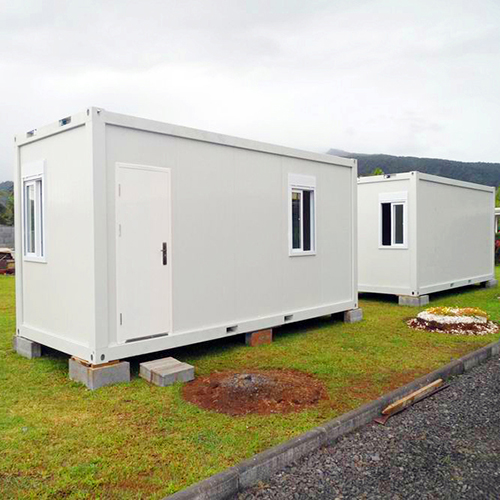

| Project Name | Low-cost Container House | ||
| Finished Time | Year 2015 | ||
| Project Place | Reunion | ||
| Building Area | 7 units | ||
| Project Description | Container house for low cost housing project in Reunion Islands, each has one bedroom with bathroom |
CBC’s design and research activity applies BIM system and Autodesk Revit software. As China Wholesale Flatpack Container House Suppliers and Flatpack Container House Manufacturers.Based on relevant information and requirements of the project, we establish a building model to simulate the real information about the building through digital information simulation. what’s more, we can easily present details and 3D renderings of our company’s products to all clients.
In Year 2007, we created a unique flatpack roof system Using injected PU foam as core material, which solved the problem of the balance between the tightness, the strength and the full prefabrication in the factory.
We are also the first one to use FrameCAD system to design and manufacture the light gauge steel villa in China.
We have more than 100 patents for different parts or technology innovations, such as the wall panel clips, the skirting, the corner parts…
Feel free to contact us if you have questions or wish to get a free quote on yourdream house.Please fill out the contact form below or email [email protected].
